F4X4 tubular rear bumper Toyota Hilux Revo 2020-
Fit
Toyota Hilux Revo, from 2020. The bumper is not homologated.
Specifications
- Bumper made from tube
- Frame mounts made from 5 mm sheet steel
- Laser cut, CNC press brake bent, hand finished
- Shot blasted and epoxy primed
- Powder coated in RAL 9005 matte black with a fine texture, other RAL colours on request
- Stainless steel bolts
- Product code: ZHP

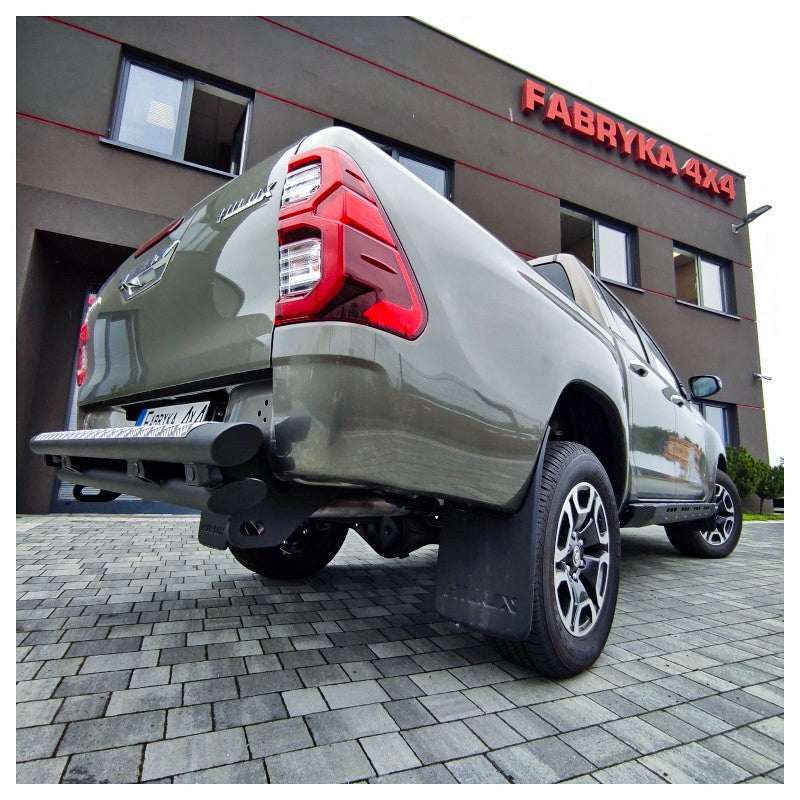

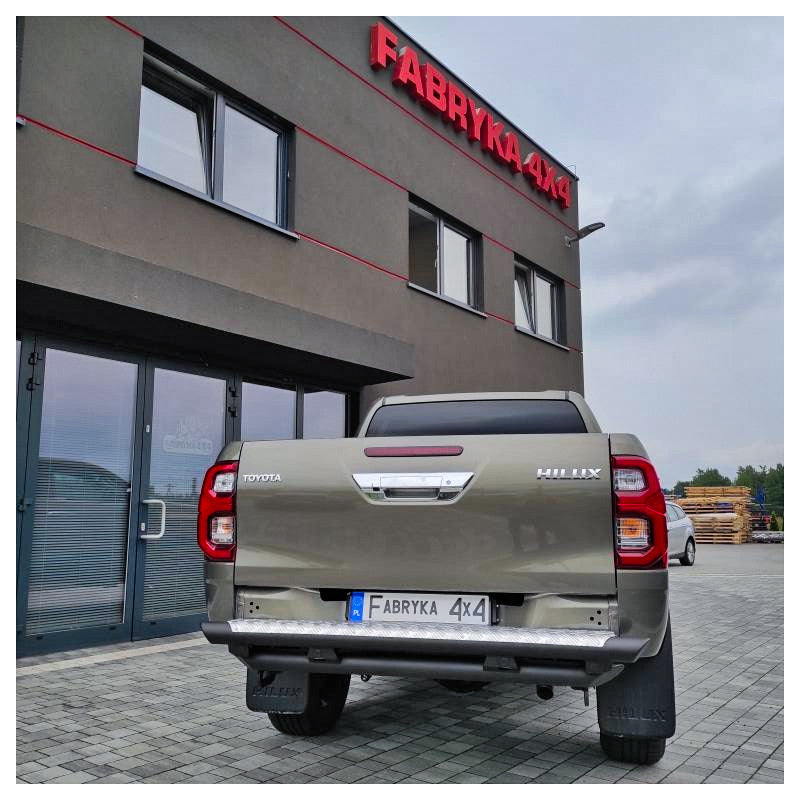

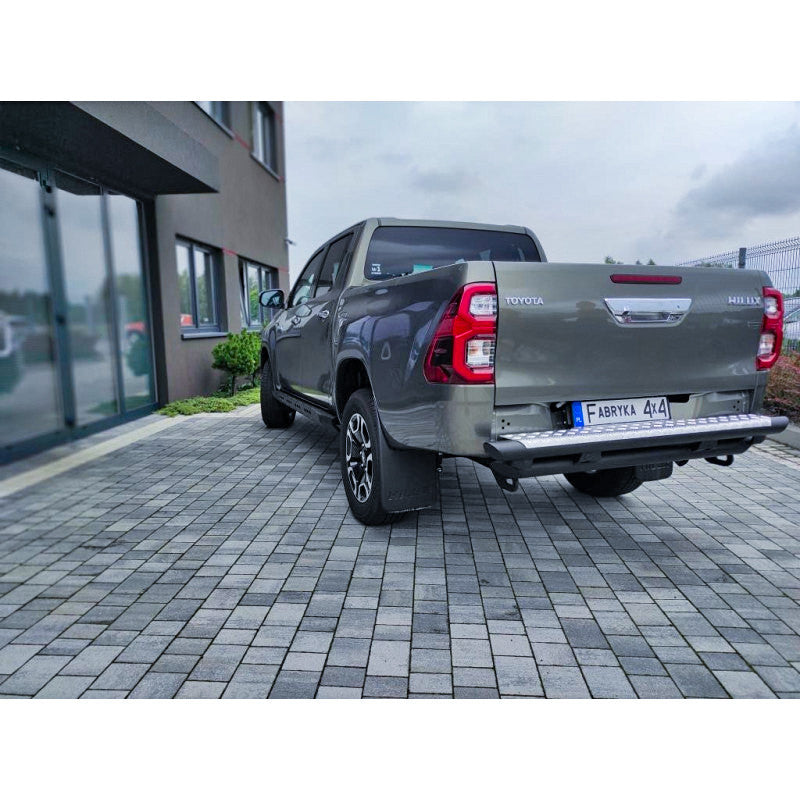

The Hilux's rear corner

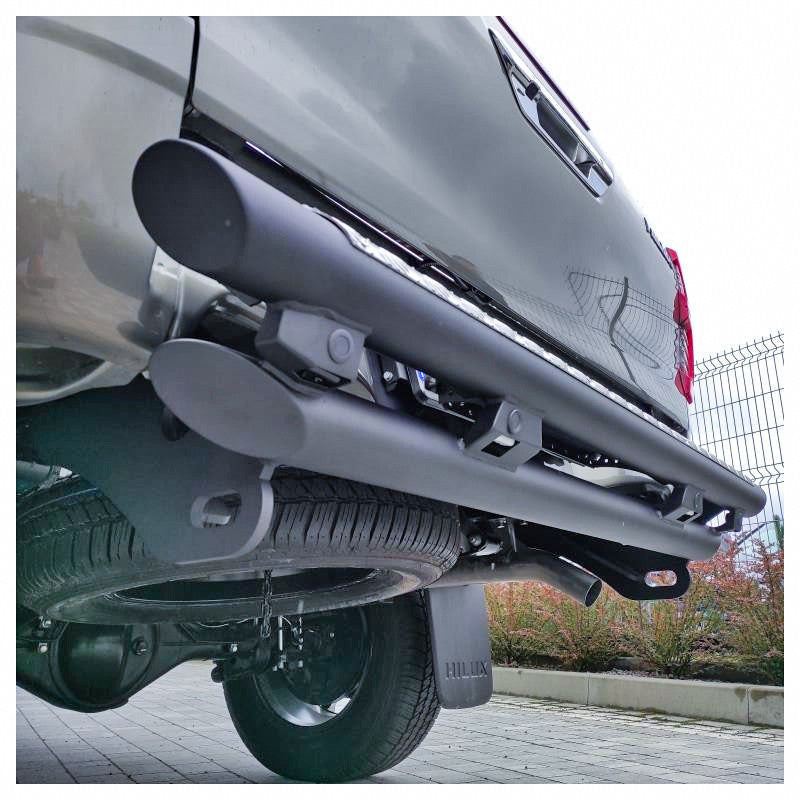

A pickup bed reaches far behind the rear wheel, and it is the rear corner that gets hit first when reversing in the woods. The tubular rear bumper protects the bottom edge of the bed from rocks and stumps and fixes to the frame with mounts made from 5 mm steel sheet.
The manufacturer's description does not say clearly whether this model has shackle and hi-lift points. If they matter to you, ask us before ordering. Under the paint there is shot blasting and epoxy primer, and the bolts are stainless steel.
Installation
All the required mounting hardware is included and the bumper can be removed later. Shackle mounts are not part of the set – if you want to add them, check the options or ask us how they suit this bumper.
Delivery
An oversized item – we ship it as palletised freight, it will not fit in a parcel locker.
If the manufacturer has none in stock right away, the bumper is made within 2 weeks.
Fitting the bumper is a modification to the vehicle – check the Estonian Transport Administration registration requirements before using it on public roads.
