F4X4 rear bumper Ineos Grenadier Quartermaster 3.0 petrol 2023-
Fit
Ineos Grenadier Quartermaster 3.0 petrol (3.0B), 2023 onwards. The manufacturer names the engine, so keep that in mind when ordering.
Specifications
- Bumper made of 4 mm steel sheet
- Frame mounts made from 5 mm sheet steel
- Laser cut, CNC press brake bent, final shape by hand
- Shot blasted and epoxy primed
- Powder coated in RAL 9005 matt black with a fine texture, other RAL colours to order
- Stainless steel bolts
- Shackle mount points, two hi-lift points for lifting
- Lights included
- Product code: ZIM
Behind the Quartermaster's load bed
A pickup's long rear overhang touches the ground off road more often than you would think, and it helps when what meets it is steel rather than plastic. Coming over a ditch edge or a rock, the 4 mm bumper takes the hit and the 5 mm frame mounts keep it in place. If you need to be pulled out backwards there is a shackle mount point, and the hi-lift points let you raise the rear end.

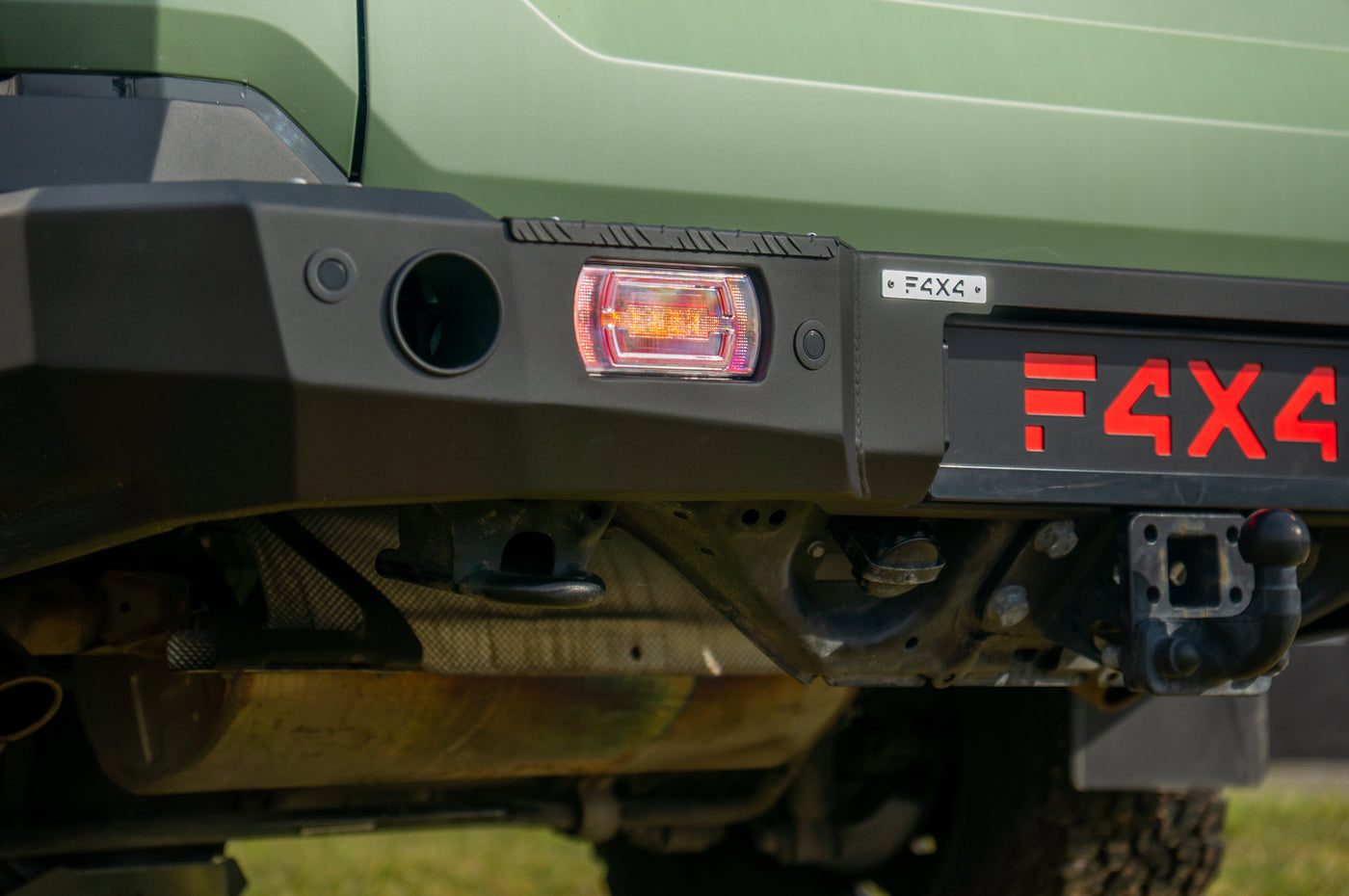

The lights come with the bumper and are part of the kit.
Before powder coating the bumper is shot blasted and epoxy primed, and only stainless steel bolts are used to fit it.
Installation
All mounting hardware and the lights are included; the bumper bolts to the frame and can be removed when needed. Shackle mounts are not included; you can add them from the options.
Delivery
A large, heavy item that comes as palletised freight – it will not fit in a parcel locker.
If the manufacturer does not have it in stock, production takes 2 weeks.
Fitting a rear bumper is a modification to the vehicle – check the Estonian Transport Administration's registration requirements before driving on public roads.
