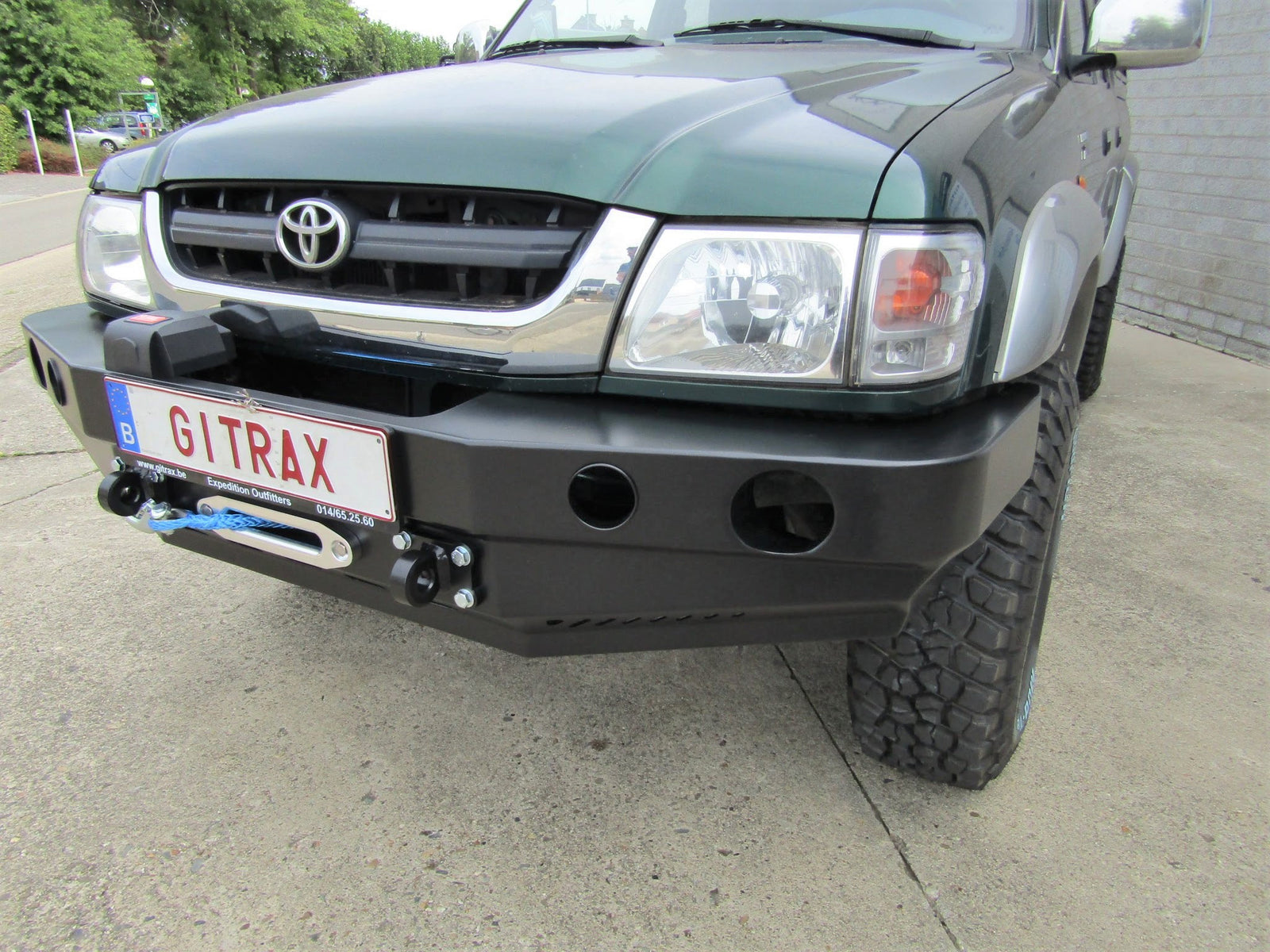

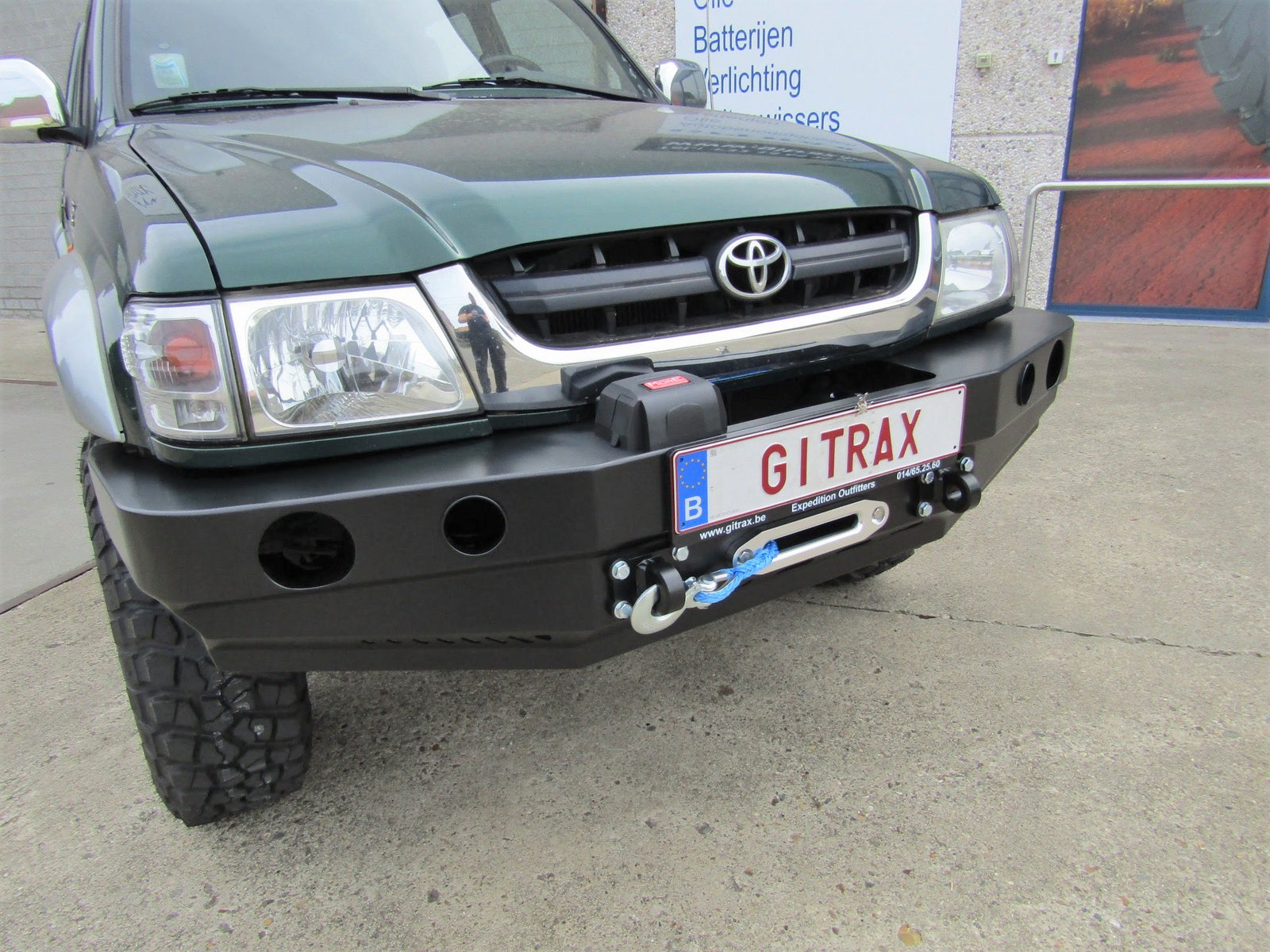

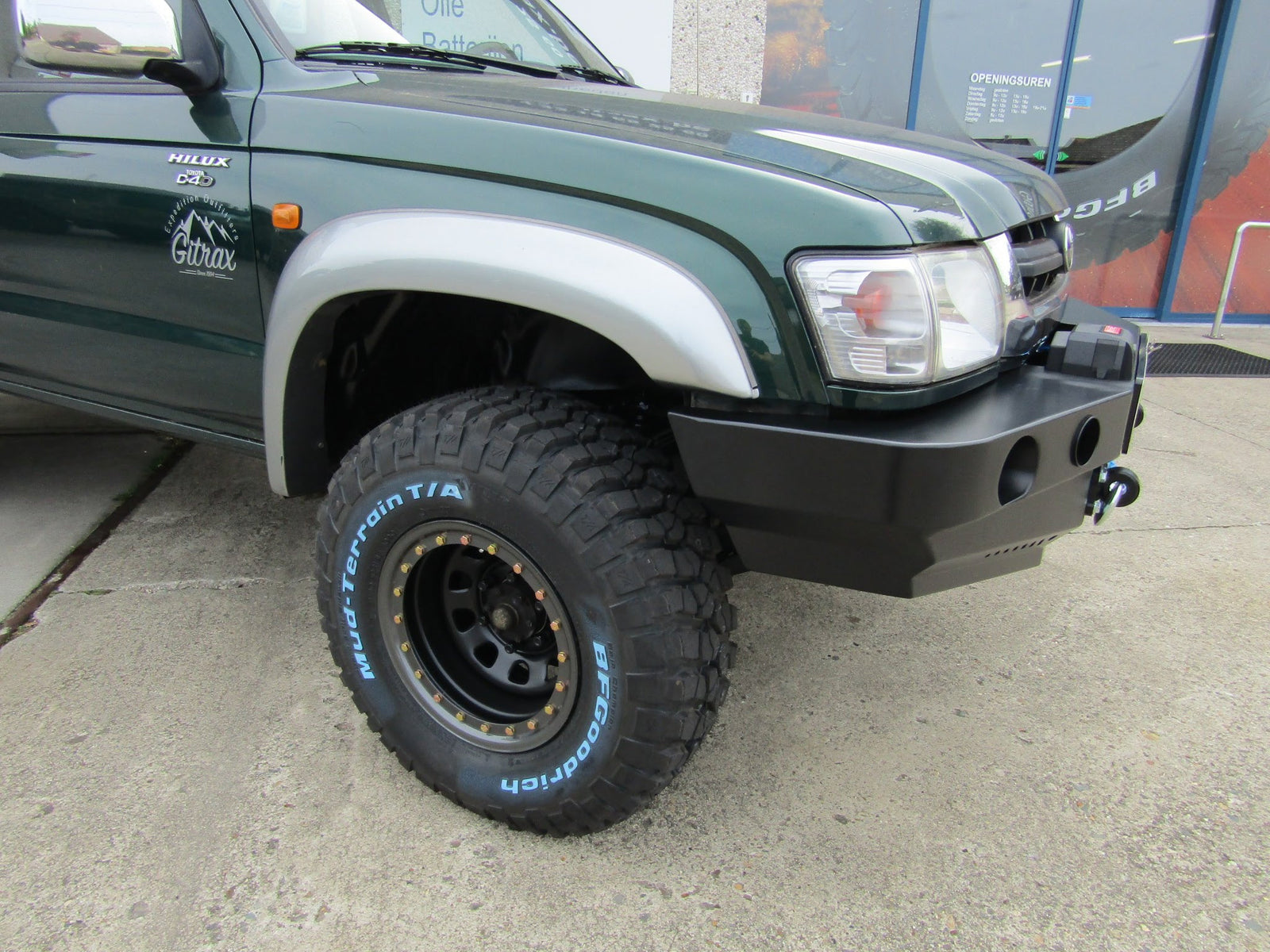

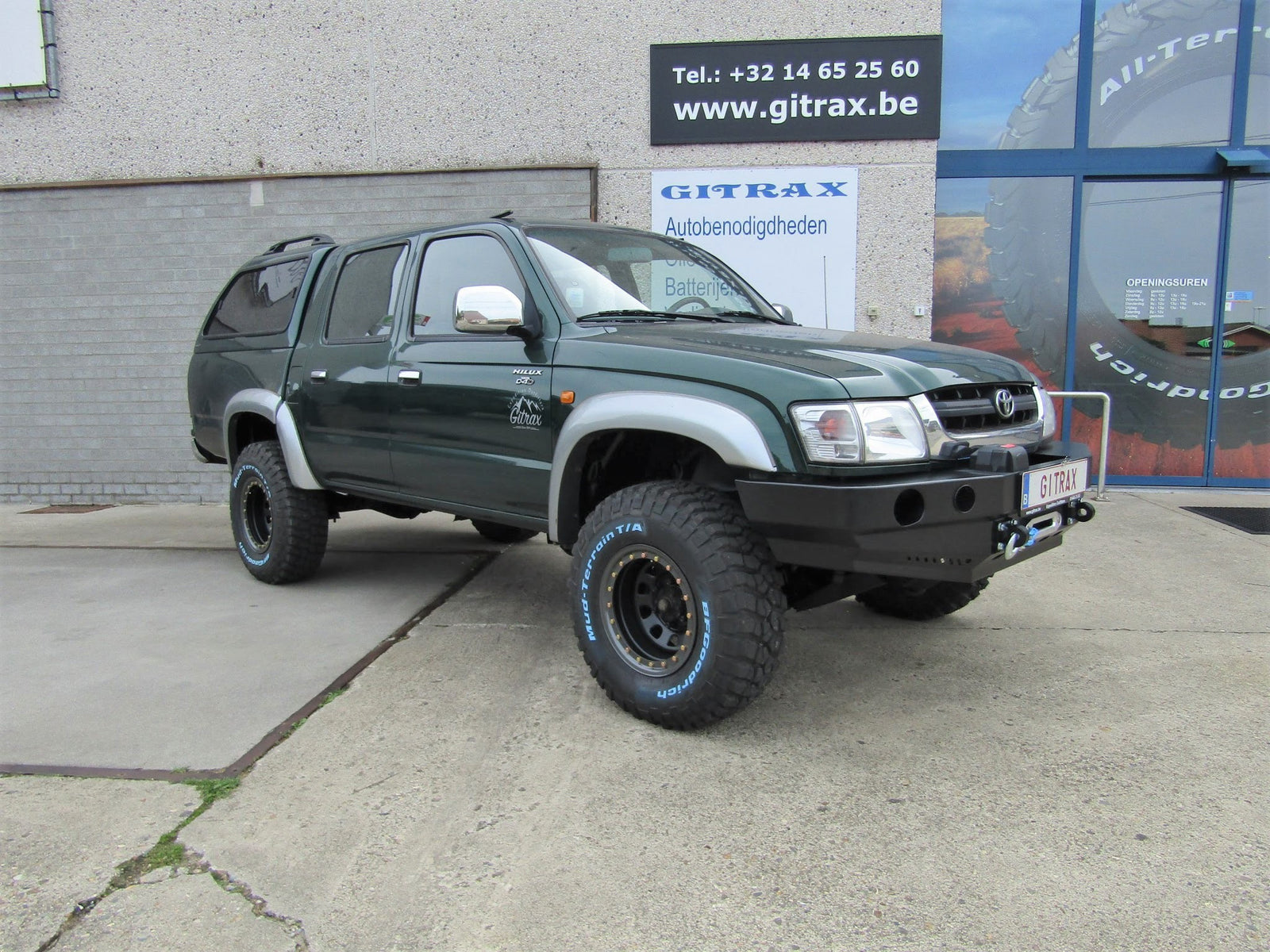

F4X4 front bumper Toyota Hilux 1998-2005
Fit
Toyota Hilux, 1998–2005. Version with openings for auxiliary lights. The bumper is not homologated.
Specifications
- Bumper made from 3 mm sheet steel
- Winch mount and frame mounts made of 5 mm steel sheet
- Laser cut, CNC press brake bent, hand finished
- Shot blasted and epoxy primed
- Powder coated in RAL 9005 matte black with a fine texture, other RAL colours on request
- Stainless steel bolts
- Auxiliary light holes, shackle mount points, two hi-lift holes for lifting
- Product code: ZHA
The Hilux and the winch
This generation of Hilux is often a working vehicle that spends more time in forests, fields and quarries than on tarmac. When the pickup gets stuck in soft ground, the winch mount really has to hold – here the winch mount and frame mounts are 5 mm steel, so the winch pulls from the chassis and the mount won't twist even on an angled pull. The two hi-lift holes let you raise the front.
The light holes are ready in the bumper, and you can pick suitable lights straight from the options. You can see all our lights here– ask us what else is available.
Stainless bolts and epoxy primer under the powder coat mean the bumper will still come off when needed, even after several winters.
Installation
The kit includes all the fixings you need, the bumper bolts to the chassis and comes off if needed. Shackle mounts and lights are not included – you can add them from the options.
Delivery
The bumper comes as palletised freight – its size and weight won't fit in a parcel locker.
If the manufacturer has none in stock, production takes 2 weeks.
Fitting a front bumper is a modification to the vehicle's construction – check the Estonian Transport Administration's registration requirements before driving on public roads.
