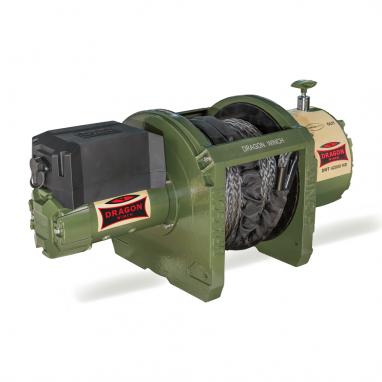

DWT 42000 HD-S

The DWT 42000 HD-S comes with synthetic rope, which is lighter than steel cable and easier to handle. On the first layer the winch pulls in 2.2 m/min with no load and 0.4 m/min at full load. On the last, 5th layer the pulling capacity drops to 9560 kg, so for a heavy pull unspool the line first so that you are working on the lower layers.

Use

• Trucks and heavy goods vehicles
• Tow trucks and recovery trucks
• Heavy machinery and industry

Specifications

• Pulling capacity: 42,000 lb / 19,050 kg
• Voltage: 24 V

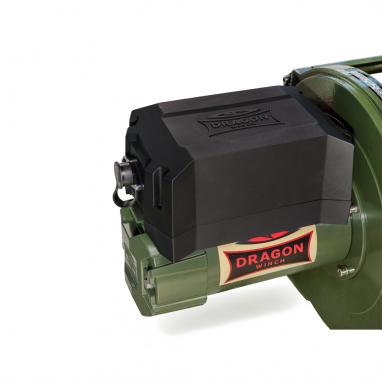

• Motor: 12.5 hp
• Gearbox: 4-stage planetary gearbox
• Gear ratio: 600:1
• Brake: dynamic
• Synthetic rope: 35 m
• Line speed on 1st layer: 2.2 m/min with no load, 0.4 m/min at full load
• Pulling capacity by layer: 19,050 / 15,262 / 12,731 / 10,920 / 9560 kg (layers 1–5)
• Drum capacity: 35 m
• Mounting hole spacing: 263 mm × 114 mm / 263 mm × 224 mm
• Dimensions (L×W×H): 775 mm × 353 mm × 366 mm
• Weight: 132 kg
• Product code: DWT 42000 HD-S
• Series: Dragon Winch Truck

Installation

The mounting hole spacing is 263 mm × 114 mm / 263 mm × 224 mm. Exact dimensions are on the technical drawing among the product photos.

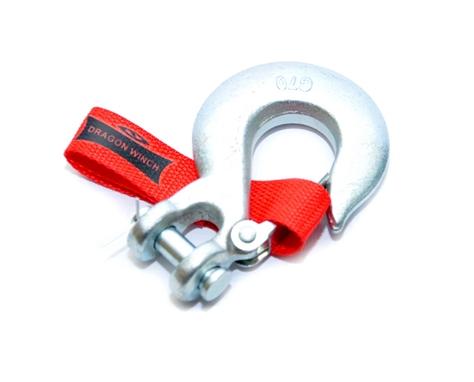

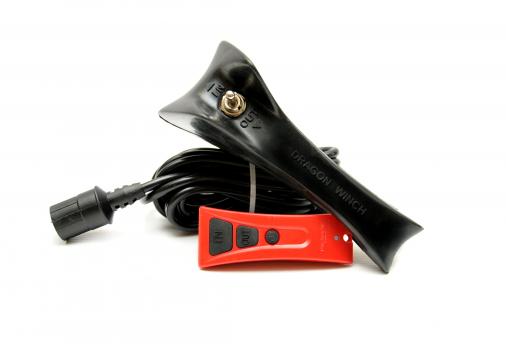

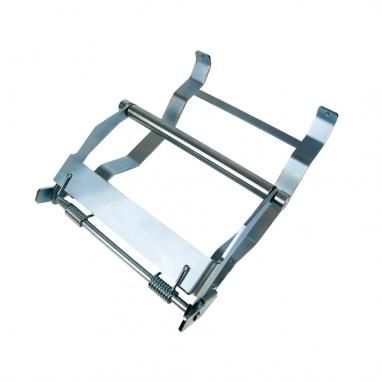

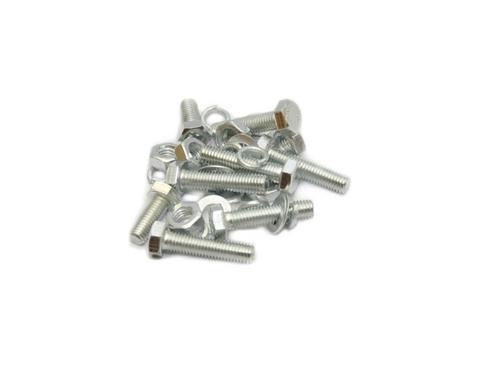

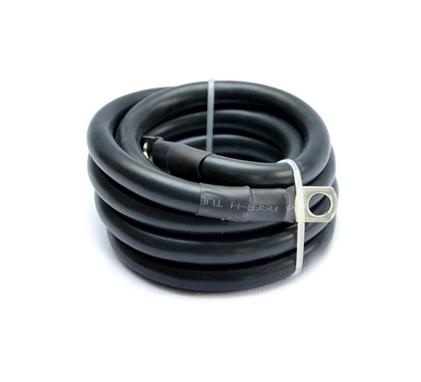

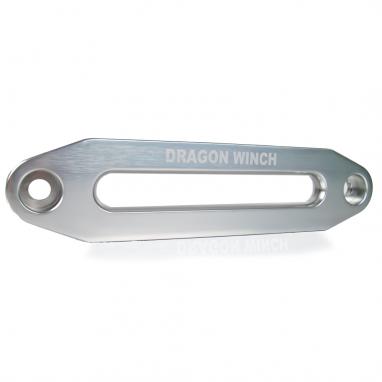

In the box: the synthetic rope winch comes with an aluminium hawse fairlead. Other contents are shown in the product photos.

Delivery

Weight 132 kg. Shipped on a pallet by freight.
