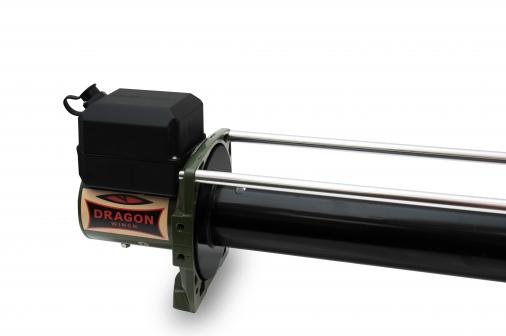

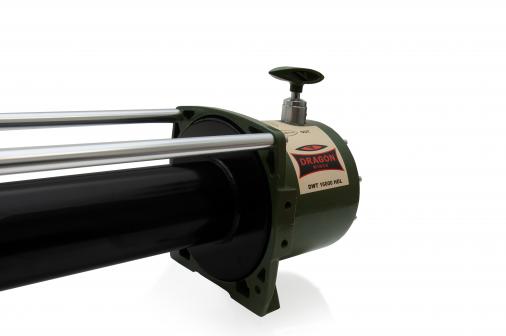

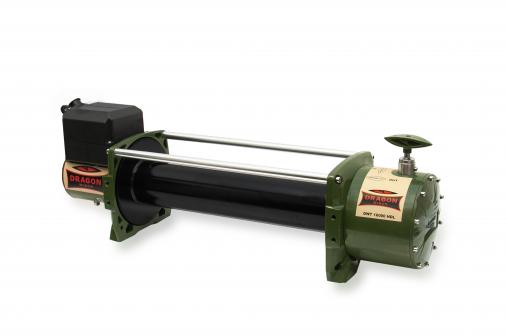

DWT 16000 HDL
The DWT 16000 HDL is the extended drum version: the longer drum holds more cable and keeps the cable layers lower, so the pulling capacity drops less. On the first cable layer the winch spools at 5.3 m/min with no load and 2.7 m/min at full load. On the last, 4th layer the pulling capacity drops to 4496 kg, so for a heavy pull spool the line out first to work on the lower layers.
Options
Choose the right version on the product page before adding to basket:
- 12 V – for cars, 4x4s and pickups with a 12 V electrical system
- 24 V – for cars, 4x4s and pickups, trucks, buses and heavy machinery with a 24 V electrical system
Use
- Heavy 4x4s and work vehicles
- Trucks and tow trucks
- Forestry machinery
Specifications
- Pulling capacity: 16,000 lb / 7257 kg
- Voltage: 12 V or 24 V
- Motor: 7.8 hp
- Gearbox: 3-stage planetary gearbox
- Gear ratio: 358:1
- Brake: dynamic
- Line speed on 1st layer: 5.3 m/min no load, 2.7 m/min at full load
- Current draw at full load: 440 A (12 V), 250 A (24 V)
- Pulling capacity by layer: 7257 / 6020 / 5182 / 4496 kg (layers 1–4)
- Drum capacity: 60 m
- Mounting hole spacing: 480 mm × 114 mm
- Dimensions (L×W×H): 792 mm × 196 mm × 266 mm
- Weight: 80 kg
- Product code: DWT 16000 HDL
- Series: Dragon Winch Truck
Installation
The mounting hole spacing is 480 mm × 114 mm. Exact dimensions are on the technical drawing among the product images.

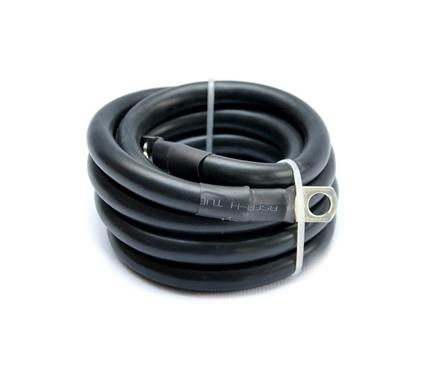

At full load the winch draws up to 440 A, so connect the power cables directly to the battery and keep the engine running while winching.

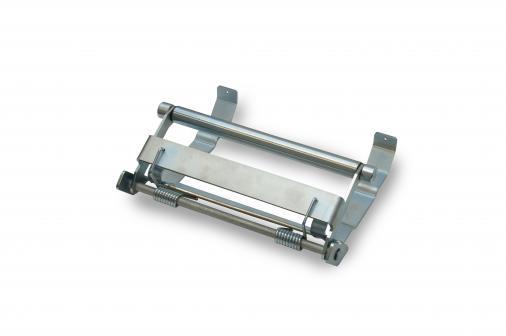

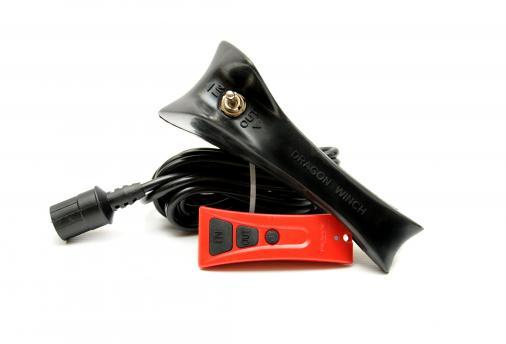

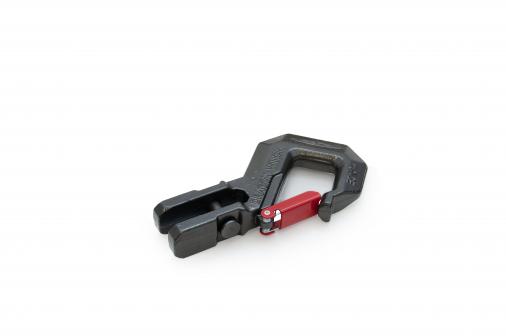

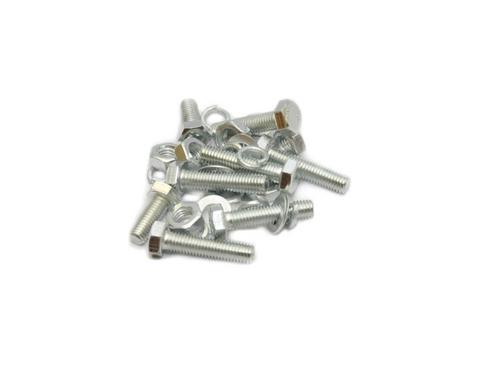

In the box: the steel cable winch comes with a roller fairlead. Other contents are shown in the product photos.
Delivery
Weight 80 kg. Shipped by courier.
