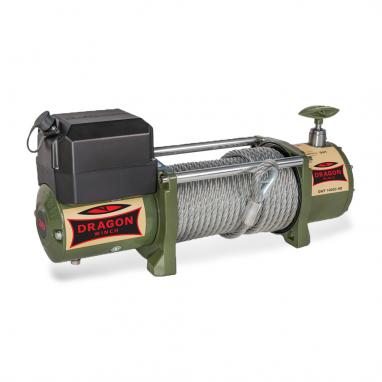

DWT 14000 HD

On the first cable layer the winch spools in at 6 m/min with no load and 1.1 m/min at full load. On the last (4th) layer the pulling capacity is 3746 kg, so for a heavy pull, spool the cable out first so you work on the lower layers.

Options

Choose the right version on the product page before adding to basket:

• 12 V – for cars, 4x4s and pickups with a 12 V electrical system
• 24 V – for cars, 4x4s and pickups, trucks, buses and heavy machinery with a 24 V electrical system

Use

• Heavy 4x4s and work vehicles
• Trucks and tow trucks
• Forestry machinery

Specifications

• Pulling capacity: 14,000 lb / 6350 kg
• Voltage: 12 V or 24 V
• Motor: 7.8 hp
• Gearbox: 3-stage planetary gearbox
• Gear ratio: 265:1
• Brake: dynamic
• Steel cable: 20 m or 30 m
• Line speed on 1st layer: 6 m/min no load, 1.1 m/min at full load
• Current draw at full load: 418 A (12 V), 240 A (24 V)
• Pulling capacity by layer: 6350 / 5016 / 4318 / 3746 kg (layers 1–4)
• Drum capacity: 20 m

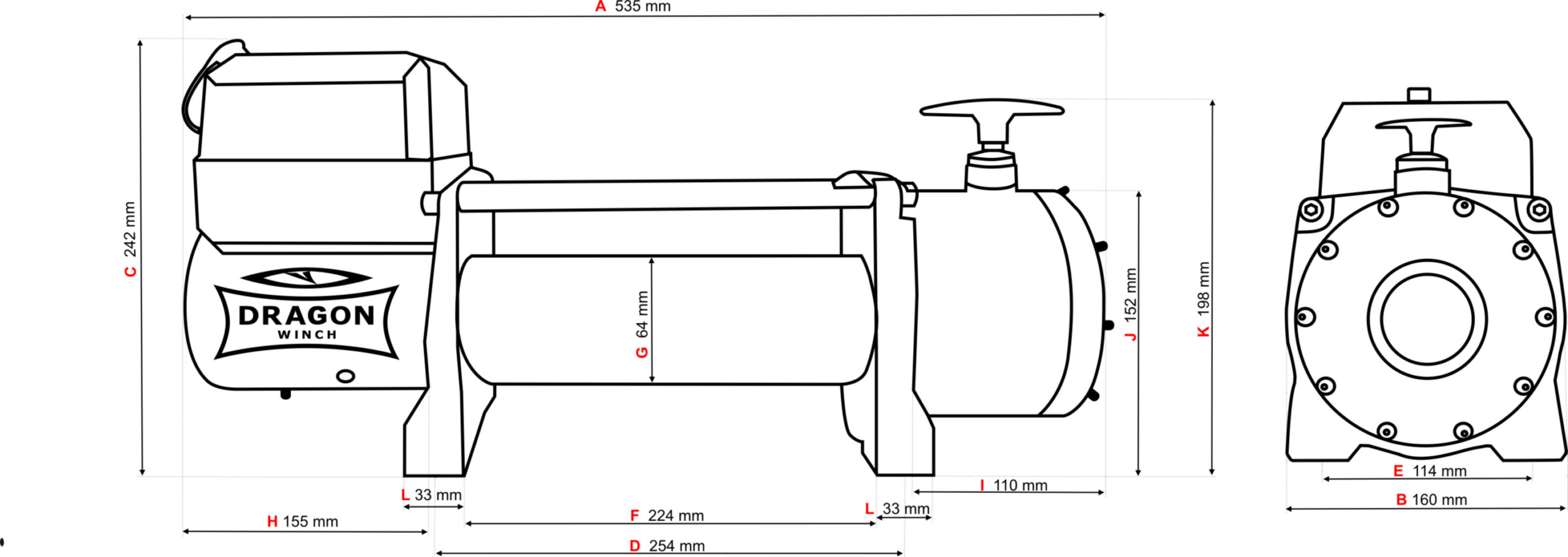

• Mounting hole spacing: 254 mm × 114 mm
• Dimensions (L×W×H): 537 mm × 159 mm × 246 mm
• Weight: 40 kg
• Product code: DWT 14000 HD
• Series: Dragon Winch Truck

Installation

The 254 × 114 mm mounting hole spacing is a common standard for full-size winches, so the winch fits most winch mounting plates and bumpers with a winch mount.

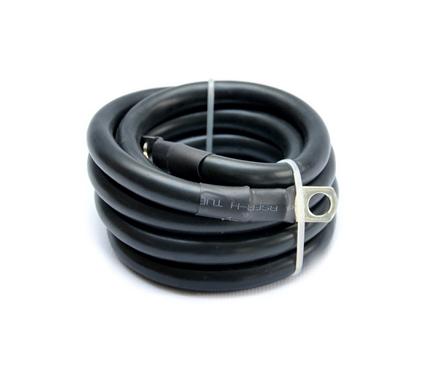

At full load the winch draws up to 418 A, so connect the power cables directly to the battery and keep the engine running while winching.

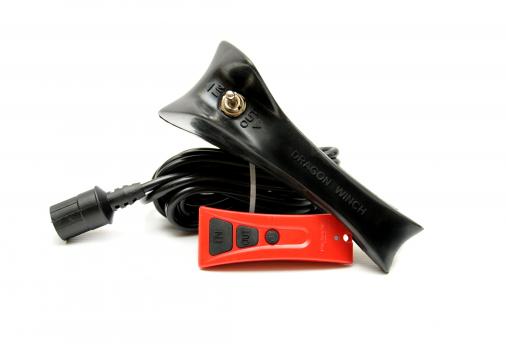

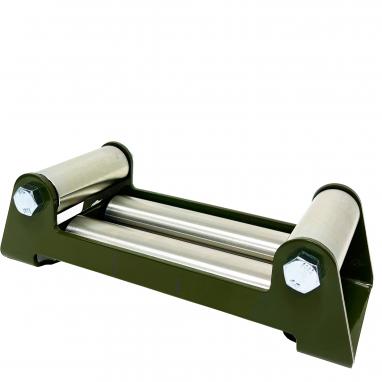

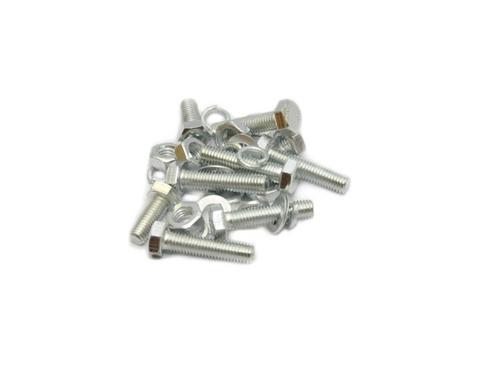

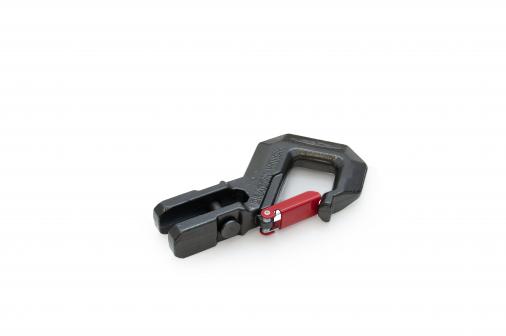

In the box: the steel cable winch comes with a roller fairlead. Other contents are shown in the product photos.

Delivery

Weight 40 kg. Shipped by courier.
