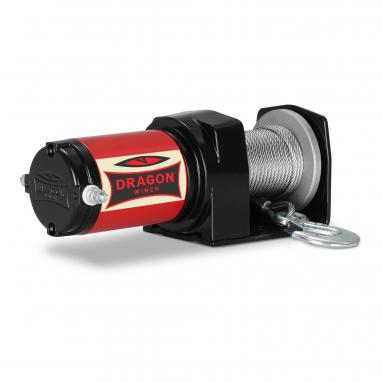

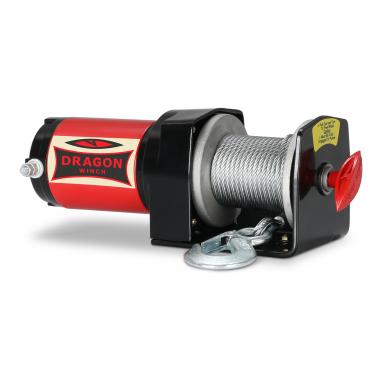

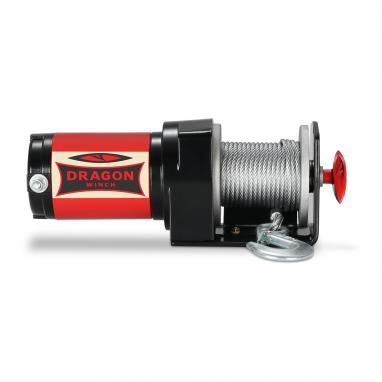

DWM 2000 ST

The DWM 2000 ST comes with steel cable, which withstands wear and heat better than rope. The same winch with synthetic rope is the DWM 2000 ST-S. On the last, 5th layer the pulling capacity drops to 444 kg, so for a heavy pull spool the cable out first to work on the lower layers.

Use

• ATVs and smaller UTVs
• Boat trailers and light trailers
• Light lifting and pulling in the workshop

Specifications

• Pulling capacity: 2000 lb / 907 kg
• Voltage: 12 V
• Motor: 1.4 hp
• Gearbox: single-stage planetary gearbox
• Gear ratio: 153:1
• Brake: self-braking

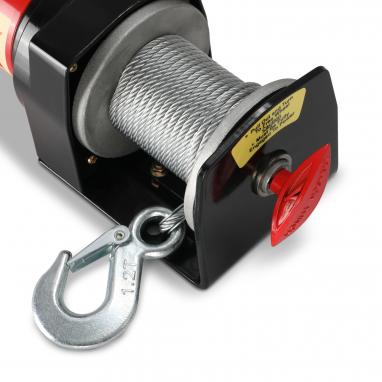

• Steel cable: 10 m
• Pulling capacity by layer: 907 / 716 / 617 / 535 / 444 kg (layers 1–5)
• Drum capacity: 10 m

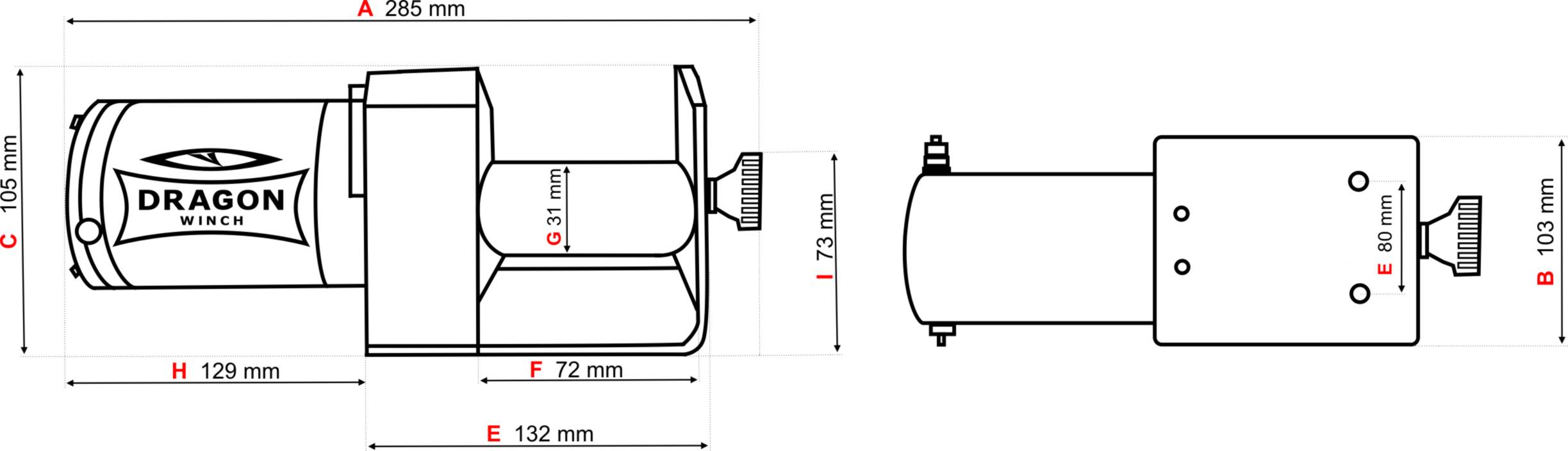

• Dimensions (L×W×H): 280 mm × 100 mm × 100 mm
• Weight: 5.8 kg
• Product code: DWM 2000 ST
• Series: Dragon Winch Maverick

Installation

In the box: the steel cable winch comes with a roller fairlead. Other contents are shown in the product photos.

Delivery

Weight 5.8 kg. We ship by courier or parcel locker.
