DWHI 660 HD
The DWHI 660 HD is the top of the Hidra series: 30 tonnes of pulling capacity and 54 m of cable. Designed for heavy recovery trucks, ships and industry, where loads are measured in tens of tonnes.
Use
- Heavy recovery trucks and rotators
- Ships and ports
- Industry and mining
Specifications
- Pulling capacity: 66,000 lb / 30,000 kg
- Line speed: 5.5 m/min
- Oil pressure: 17 MPa / 170 bar
- Oil flow: 120 l/min
- Drum capacity: 54 m
- Drum dimensions: 530 × 280 × 360 mm
- Dimensions (L×W×H): 1337 × 618 × 530 mm
- Weight: 570 kg
- Product code: DWHI 660 HD
- Series: Dragon Winch Hidra
Installation and connection
The hydraulic winch runs off the vehicle's hydraulic system and puts no load on the battery. Before buying, check that the pump delivers at least the oil flow and pressure given in the table – with a lower flow the winch runs more slowly.

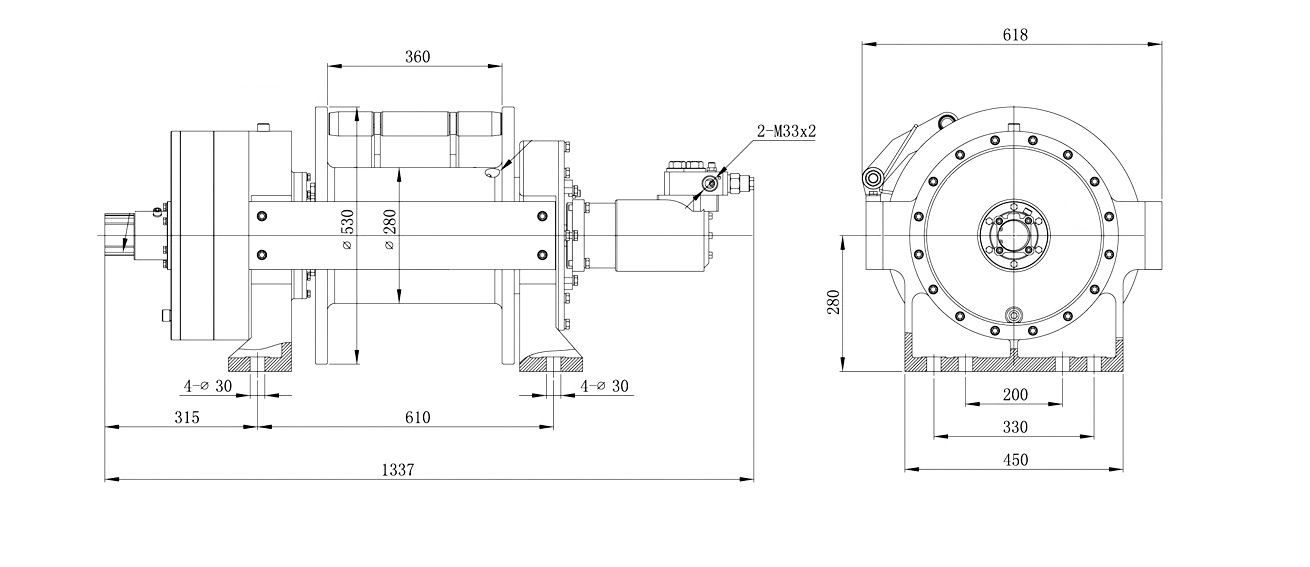

A hydraulic control valve is needed to operate it. It is bolted to the chassis or the bodywork. Exact mounting dimensions are on the manufacturer's technical drawing among the product photos.
Price
Ask for price. The manufacturer prices industrial Hidra winches per order. Write or call here and we will send you a quotation with the delivery time.
Delivery
Weight 570 kg, shipped by freight. It will not fit in a parcel locker.
