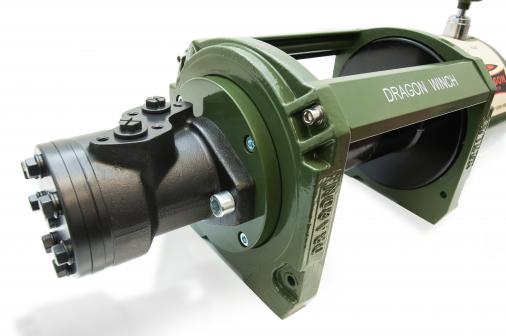

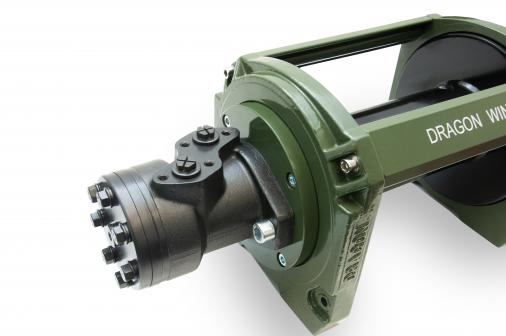

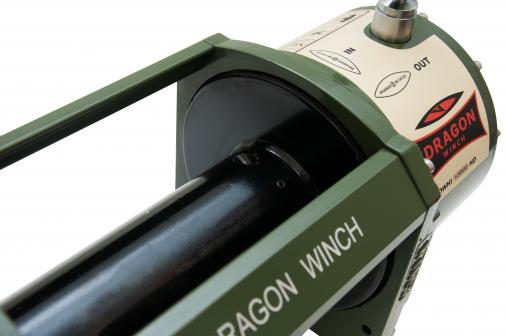

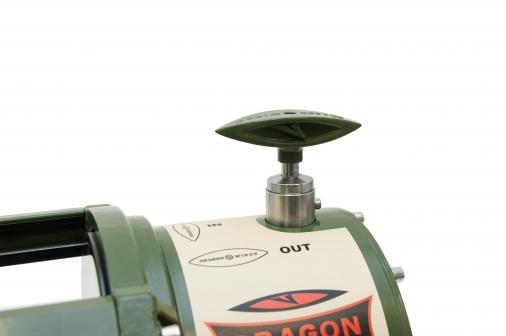

DWHI 20000 HD

The DWHI 20000 HD fits in the same space as the 16000 HD but pulls 9 tonnes. If the vehicle hauls heavy machinery or pulls out stuck trucks, it is the more sensible choice.

Use

• Tow trucks and flatbed trucks
• Heavy goods vehicles and rescue vehicles
• Construction and forestry machinery

Specifications

• Pulling capacity: 20,000 lb / 9072 kg
• Pulling capacity on the last cable layer: 6187 kg
• Line speed: 4.2 m/min (1st layer) – 5.6 m/min (last layer)
• Max oil pressure: 17.5 MPa
• Max oil flow: 60 l/min

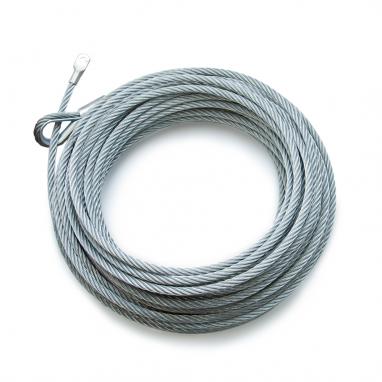

• Drum capacity: 31 m
• Cable layers: 4

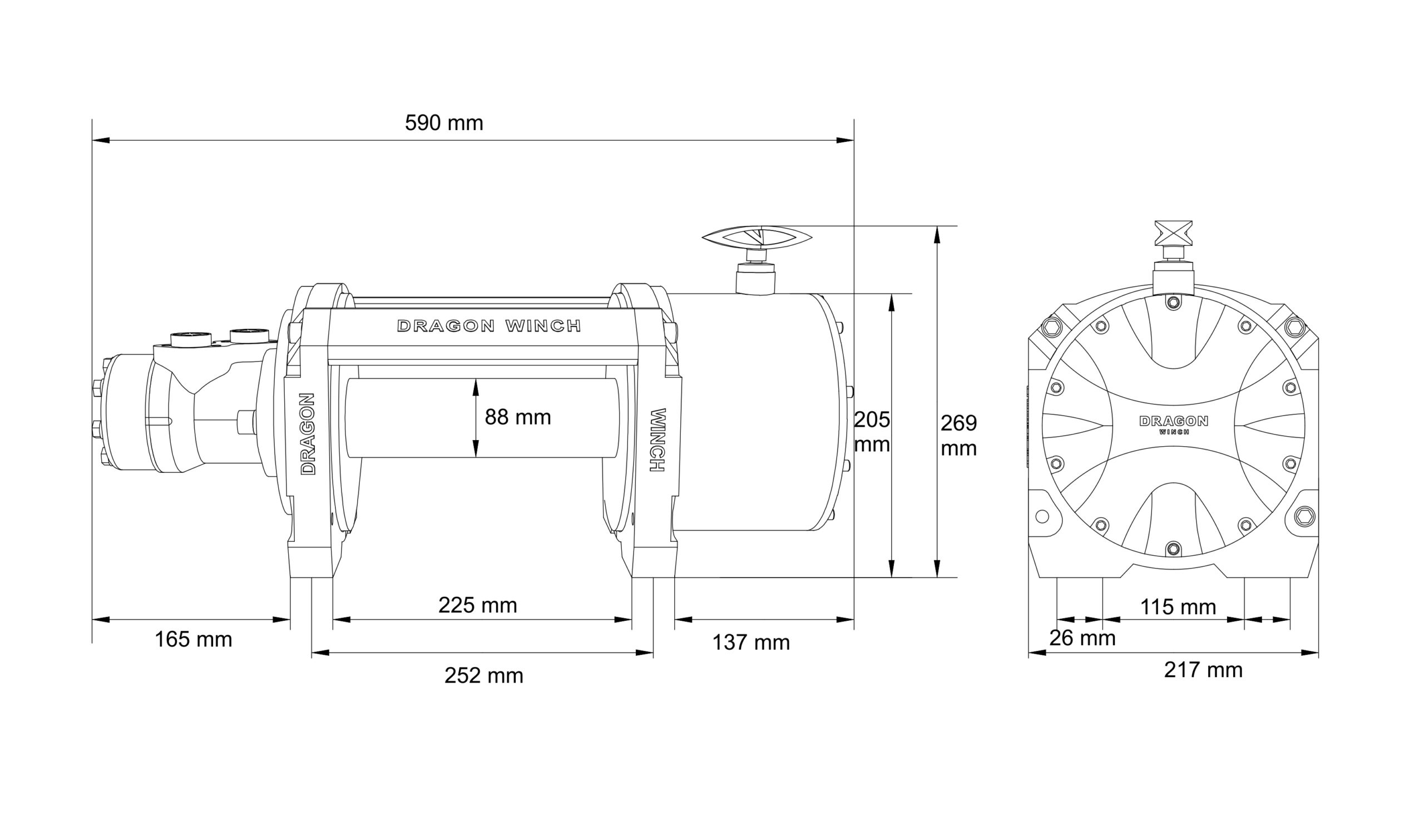

• Dimensions (L×W×H): 590 × 269 × 217 mm
• Weight: 72 kg
• Product code: DWHI 20000 HD
• Series: Dragon Winch Hidra

Installation and connection

The hydraulic winch runs off the vehicle's hydraulic system and puts no load on the battery. Before buying, check that the pump delivers at least the oil flow and pressure given in the table – with a lower flow the winch runs more slowly.

If the vehicle has no hydraulic distributor, to control it you need the Dragon Winch DWHI solenoid module. A wired remote control comes with the module.

Delivery

Weight 72 kg, shipped by freight. It won't fit in a parcel locker.
