DWHI 16000 HD

A hydraulic winch doesn't drain the battery or need electric motor cooling breaks: the DWHI 16000 HD keeps pulling as long as the pump supplies oil. 7257 kg on the first cable layer and almost 5 tonnes even on the last – suitable for everyday work, not just emergencies.

Use

• Tow trucks and recovery trucks
• Heavy goods vehicles and rescue vehicles
• Forestry machinery and agriculture

Specifications

• Pulling capacity: 16,000 lb / 7257 kg
• Pulling capacity on the last cable layer: 4944 kg
• Line speed: 4.2 m/min (1st layer) – 5.6 m/min (last layer)
• Max oil pressure: 17.5 MPa
• Max oil flow: 60 l/min

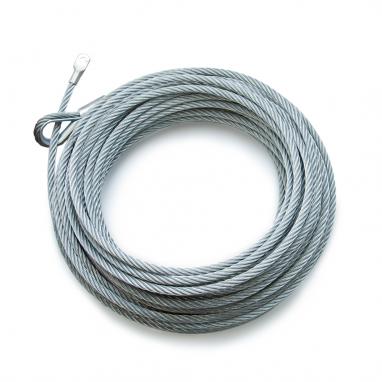

• Drum capacity: 31 m
• Cable layers: 4

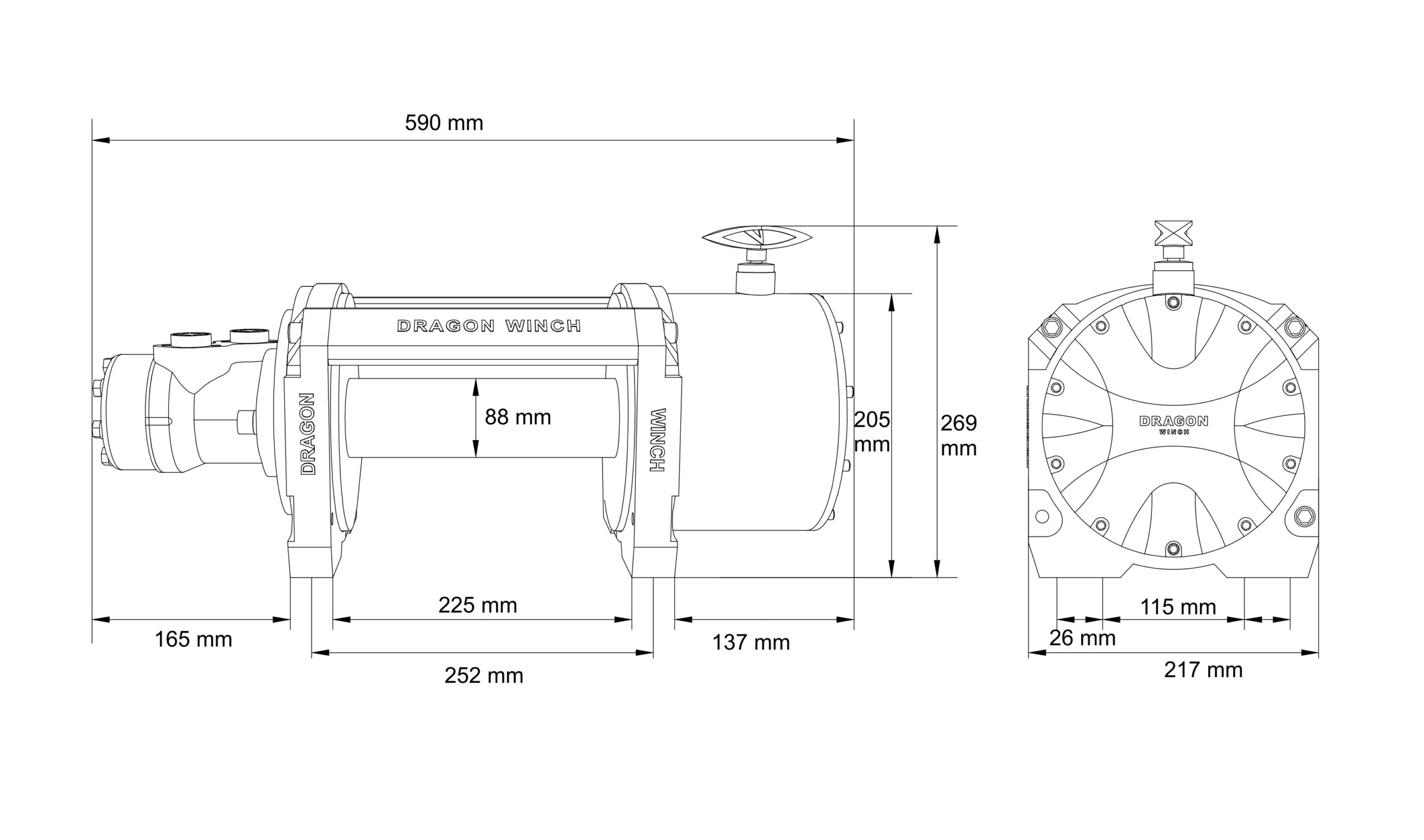

• Dimensions (L×W×H): 590 × 269 × 217 mm
• Weight: 72 kg
• Product code: DWHI 16000 HD
• Series: Dragon Winch Hidra

Installation and connection

The hydraulic winch runs off the vehicle's hydraulic system and puts no load on the battery. Before buying, check that the pump delivers at least the oil flow and pressure given in the table – with a lower flow the winch runs more slowly.

If the vehicle has no hydraulic distributor, to control it you need the Dragon Winch DWHI solenoid module. A wired remote control comes with the module.

Delivery

Weight 72 kg, shipped by freight. It won't fit in a parcel locker.
