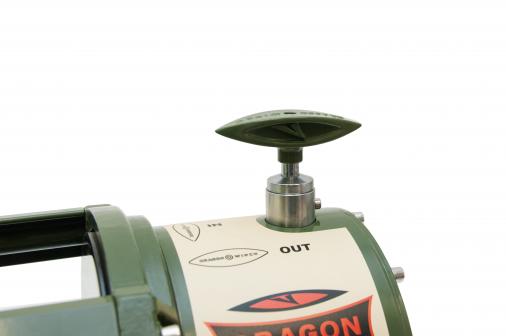

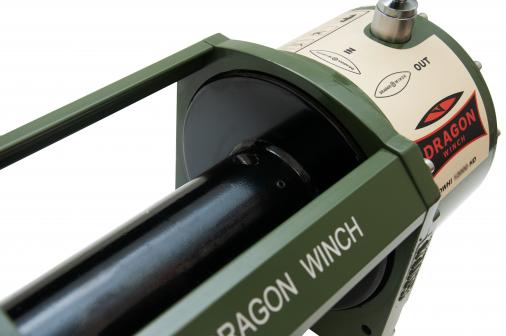

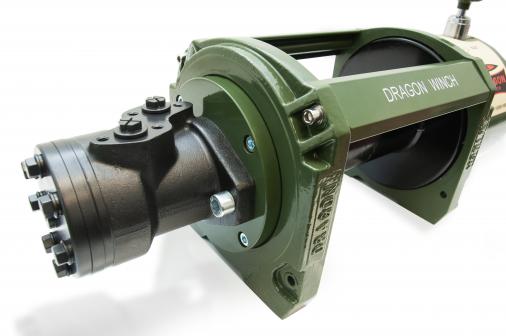

DWHI 12000 HD

The DWHI 12000 HD needs the lowest oil flow in the Hidra 12000–20000 series, 40 l/min. It suits vehicles whose pump cannot deliver the 60 l/min required by the 16000 and 20000 models.

Use

• Tow trucks and recovery trucks
• Tractors and forestry machinery
• Work trucks where an electric winch cannot sustain a long pull

Specifications

• Pulling capacity: 12,000 lb / 5443 kg
• Pulling capacity on the last cable layer: 2851 kg
• Line speed: 4.4 m/min (1st layer) – 6.8 m/min (last layer)
• Max oil pressure: 16 MPa
• Max oil flow: 40 l/min
• Drum capacity: up to 45 m
• Cable layers: up to 5
• Dimensions (L×W×H): 590 × 269 × 217 mm
• Weight: 55 kg
• Product code: DWHI 12000 HD
• Series: Dragon Winch Hidra

Installation and connection

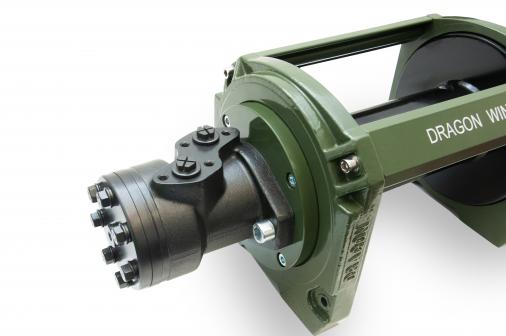

The hydraulic winch runs off the vehicle's hydraulic system and puts no load on the battery. Before buying, check that the pump delivers at least the oil flow and pressure given in the table – with a lower flow the winch runs more slowly.

If the vehicle has no hydraulic distributor, to control it you need the Dragon Winch DWHI solenoid module. A wired remote control comes with the module.

Delivery

Weight 55 kg, shipped by freight. It does not fit in a parcel locker.
