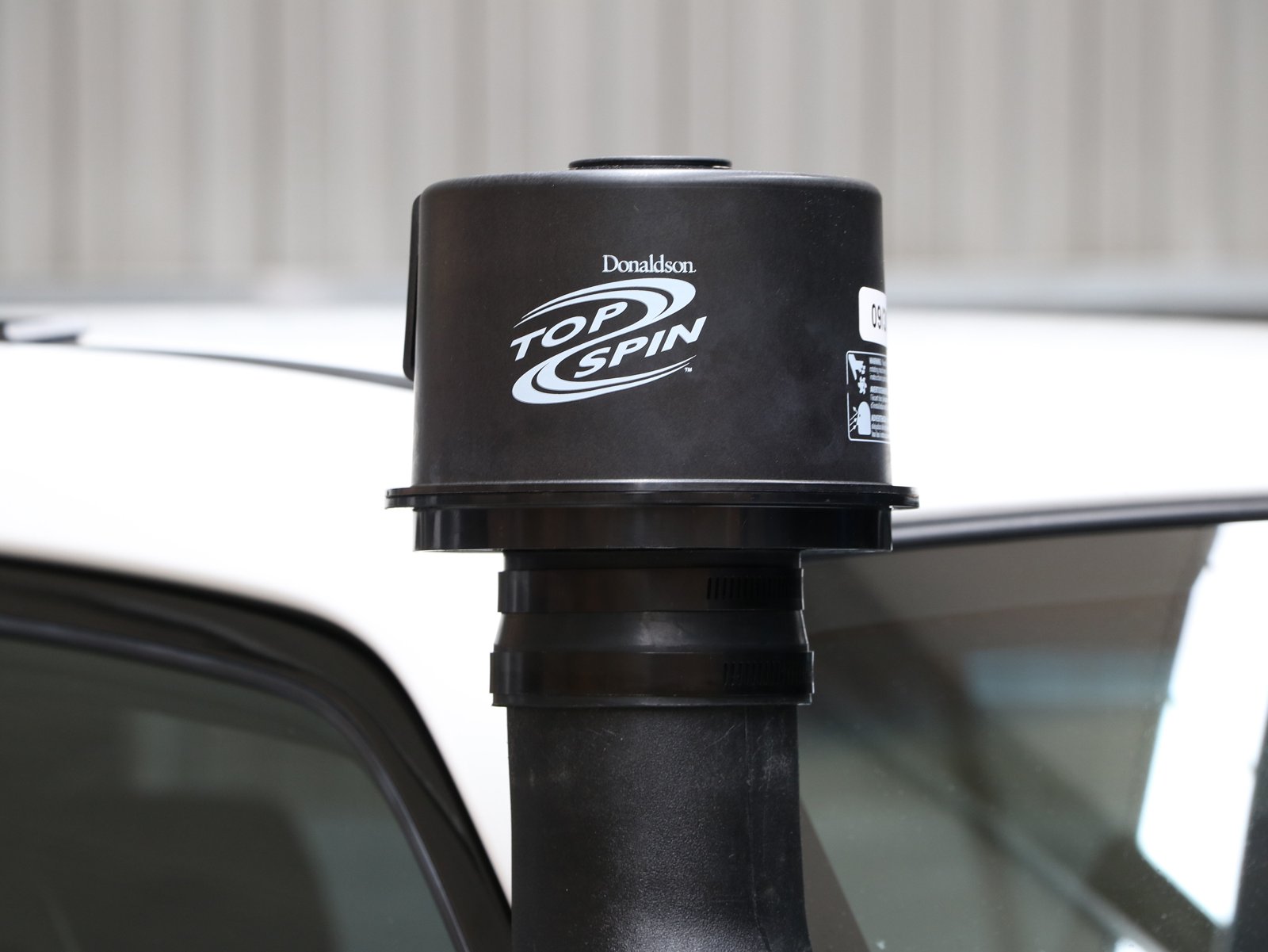

Donaldson TopSpin Snorkel Head 89mm (3.5″)

Donaldson TopSpin is a pre-cleaner with a turbine inside that spins in the air flow. It ejects the dust itself, so there is no need to empty the bowl.

Specifications

• Connection: 89 mm (3,5″) snorkli toru
• Airflow: 6 m³/min, 13 m³/min
• Purification level: 99% dust (ISO 5011 / SAE J726)
• Dust bowl: self-draining
• Construction: internal turbine, rotates under the force of the air flow
• Material: plastic and reinforced steel
• In the box: stainless steel clamp
• Warranty: 5 years

When and what

Cleans 99% from dust (ISO 5011 / SAE J726), suitable for a car that works in dusty conditions for days on end.

Bravo snorkels have 89 mm tubes, this head fits right in.

Choose the air flow (m³/min) according to the engine, the manufacturer's calculator is in the figure below. If you are not sure, send us the engine volume and power, we will choose the appropriate one.

Drawings

Installation

The head is pushed onto the end of the snorkel tube and tightened with the stainless steel clamp included in the kit. A screwdriver is all that is needed.

Installation instructions and files

• H002437 technical data (PDF)
• H002426 technical data (PDF)
• Donaldson TopSpin product sheet (PDF)

Delivery

Fits in a parcel machine (Omniva, DPD), we also ship by courier. Made to order: the manufacturer has a delivery time of up to 14 working days.
